LIGHTNING PROTECTION INSTALLATION DETAILS
AIR TERMINAL – PARAPET MOUNTING TOP MOUNT
AIR TERMINAL – ROOF MOUNTING CONCRETE SURFACE
Advertisement
AIR TERMINAL – ROOF MOUNTING BUILT UP SURFACE
NOTE: FASTEN MOUNTING BASE TO ROOF USING MANUFACTURER ADHESIVE OR SPECIALTY ROOF CEMENT
AIR TERMINAL – WALL OR PARAPET MOUNTING CONCRETE SURFACE WITH COPING OVERHEAD
AIR TERMINAL – WALL OR PARAPET MOUNTING CONCRETE SURFACE
AIR TERMINAL – RIDGE OR CABLE MOUNTED
DOWN LEAD CONDUCTOR – CONCEALED OR EMBEDDED IN WALL
DOWNLEAD CONDUCTOR SURFACE OR WALL MOUNTED

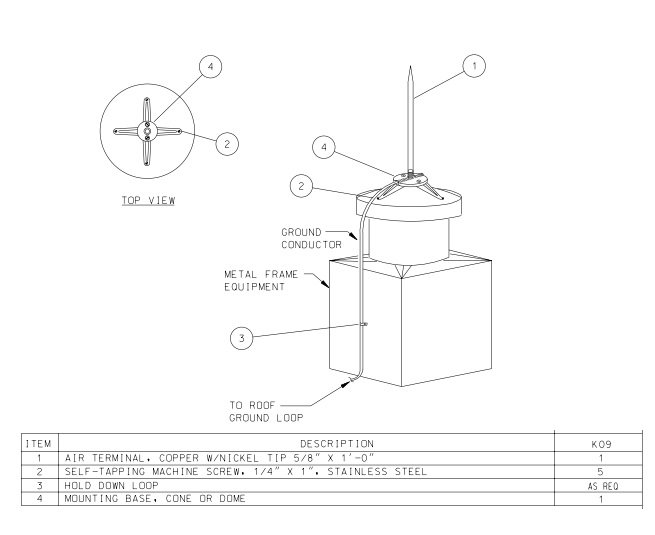

AIR TERMINAL METAL FRAME EQUIPMENT – TOP MOUNT
AIR TERMINAL HANDRAIL MOUNT
DOWNLOAD CONDUCTOR – SURFACE OR WALL MOUNTED AT GRADE
METAL FRAME BOND
