  1. Drive Test Information

In this report the performance status is shown for Islamabad cluster 06. Drive test started on 24th June, 2015 and got completed on 27th June, 2015
Site Information
Islamabad cluster 06 consists of the following sites and routes;
RNC
SiteId
SiteName
Cluster
LAC
RAC
803
3084
ISB3084H_OPPB12
ISL_CL6_HU
30203
152
803
3105
ISB3105H
ISL_CL6_HU
30203
152
803
3148
3148H
ISL_CL6_HU
30203
152
803
8194
ISB8194H_GOLRA
ISL_CL6_HU
30203
152
803
8891
RUR8891H_TARNOL
ISL_CL6_HU
30203
152
803
9259
9259H_G
ISL_CL6_HU
30203
152
803
9276
9276H
ISL_CL6_HU
30203
152
803
9290
ISB9290H_3DPLAZAG13
ISL_CL6_HU
30203
152
803
9292
ISB9292H_SANGHJANI
ISL_CL6_HU
30203
152
803
9628
RUR9628H_GOLRASTATION
ISL_CL6_HU
30203
152
803
9671
ISB9671H
ISL_CL6_HU
30203
152
803
9700
ISB9700H_E11MARKAZ
ISL_CL6_HU
30203
152
803
9730
ISB9730H_SHAHALAHDITTA
ISL_CL6_HU
30203
152
803
9987
ISB9987H_GHAURITOWMPIII
ISL_CL6_HU
30203
152
803
50025
50025H
ISL_CL6_HU
30203
152
803
50054
50054H
ISL_CL6_HU
30303
153
City – Drive Route (Google Map)

Drive Test Configuration:

We connected 3 Mobiles for coverage/quality test and the testing procedure for UMTS drive is as follows:

  1. MS1: UMTS Lock (30sec call 10sec idle).
  2. MS2: Auto Mode (180sec call 10sec idle).
  3. MS1: UMTS Lock – continuous download through FTP/Internet
Overview:
Cluster 6 is a remote cluster and has very less number of sites.  Drive for Cluster 6 was conducted to check the
impact of 40W implementation. Coverage and quality comparison of post 40W and pre drives conducted in
November 2014 is shown below
  • RSCP has lowered as compared to pre drive due to multiple reasons.
  • Cluster 6 is a remote cluster and a lot of area is being served by overshoots where there aren’t  any dedicated sites to serve the purpose.
  • Pre drive was conducted in November 2014 and network was a lot less loaded at that time so with the increase in number of users the footprint has also shrinked.
  • EcNo is significantly better in post drive. Major factor in improved EcNo is that in pre drive both CS and PS services was checked in one single drive and due to high power usage of HSPA services, EcNo was degraded.
Whereas in current drives, methadology is changed an bit with separate drives for CS and PS are being conducted

in cluster drives.

  1. DT Results

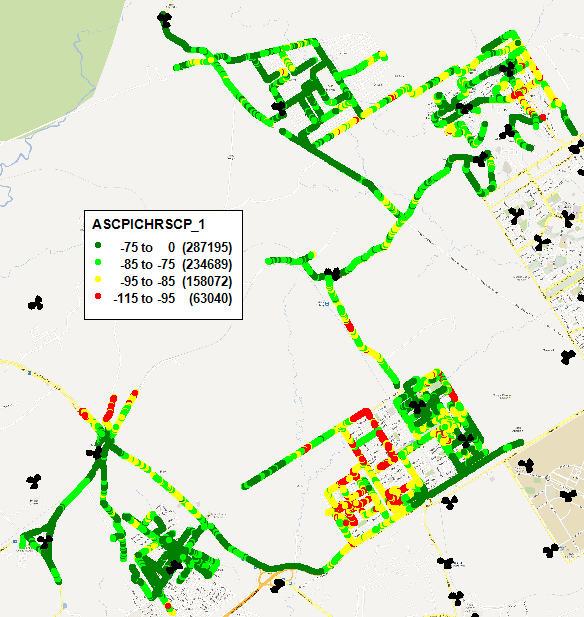

2. DT RSCP Plots

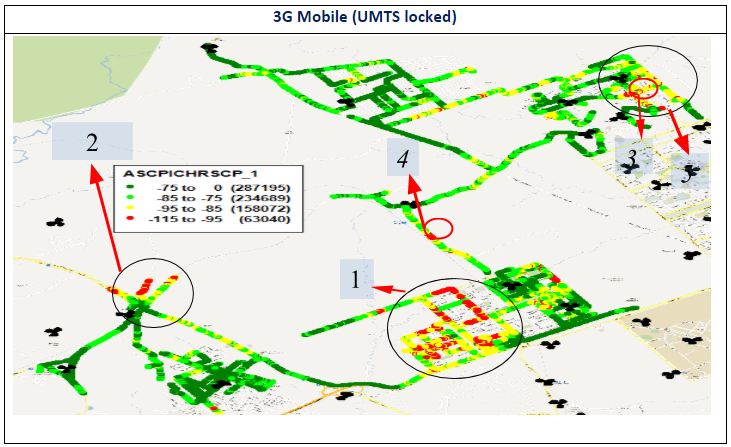

3G Mobile (UMTS locked)

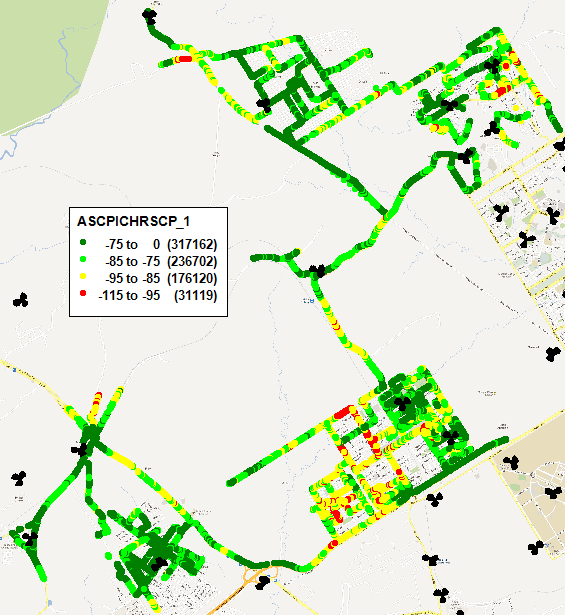

3G Mobile (Auto Mode)

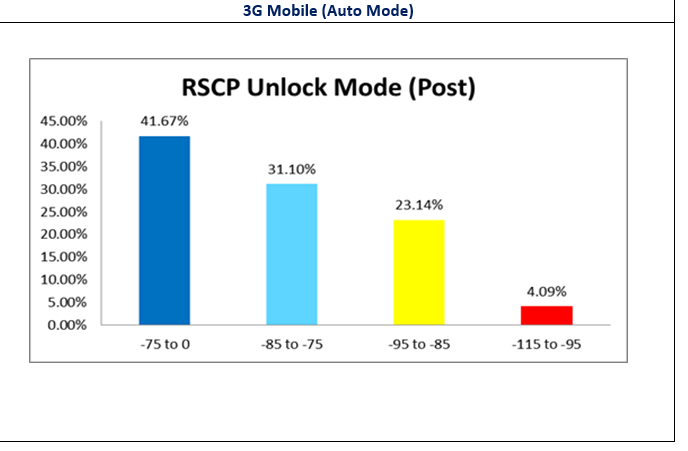

  1. DT RSCP Histogram Plots








DT EcNo Plots

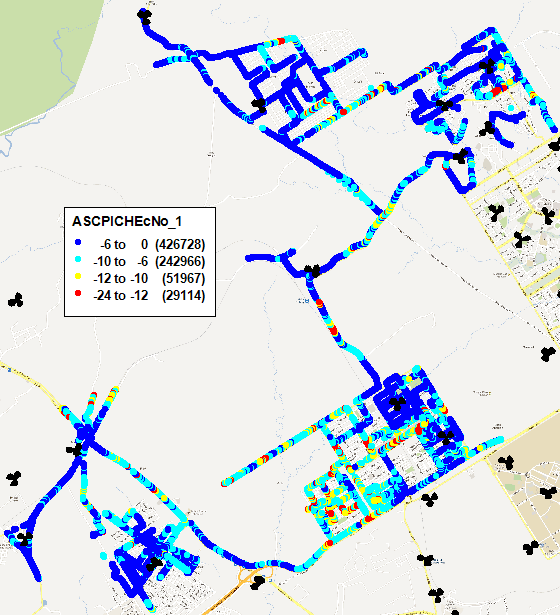

3G Mobile (The Mobile is UMTS locked)

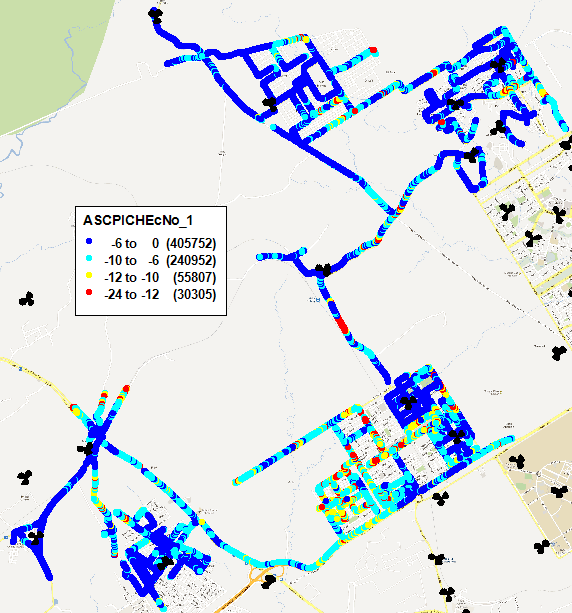

G Mobile (Auto Mode)
3G KPI Performance Report

DT EcNo Histogram Plots

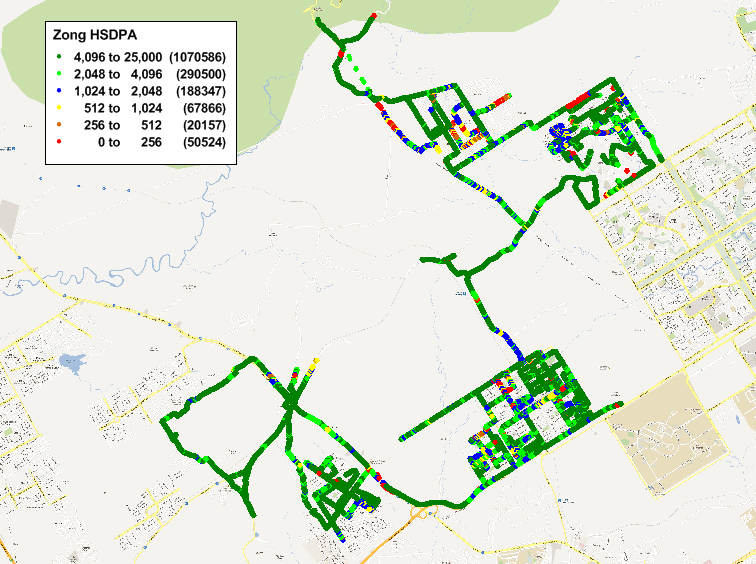

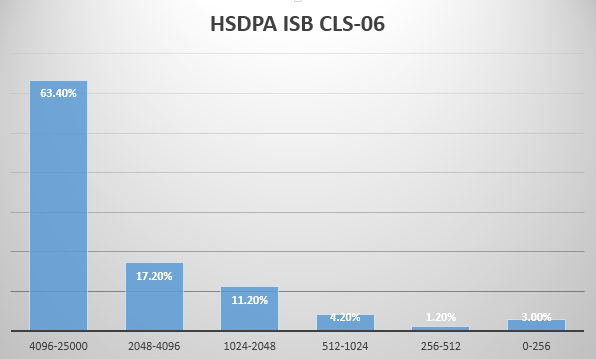

DT HSDPA Throughput Plot

DT EcNo Histogram Plots

3G KPI Performance Report

DT KPI Summary:

Drive Test KPIs
Results
S. No.
KPI
1
Speech Call Setup Success Rate
100%
2
Speech Drop Call Rate/drops
       0.09%
3
Soft Handover Success Rate
100%
4
IRAT Handover Success Rate
(If Failures were less than 3 in the cluster, KPI will be neglected)
100%
5
Inter Frequency HO Success Rate
(If Failures were less than 3 in the cluster, KPI will be neglected)
100%
6
Coverage Rate (RSCP) (RSCP>-95)
91.3%
7
Ec/Io Rate (EcNo > -9)
85%
8
HSPA Moving Throughput(kbits/sec)
6728.31

Abnormal Events Analysis and Recommendation

Event
Count
Blocked Calls
0
Dropped Calls
1

Dropped Call Analysis

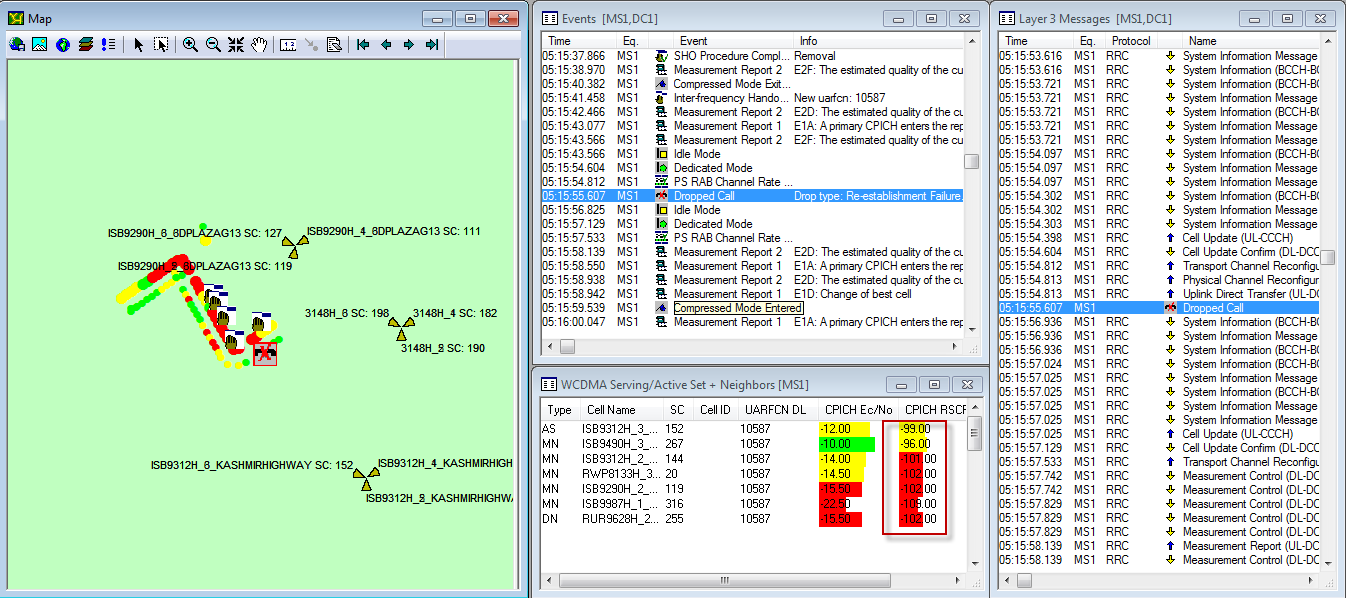

Call was dropped while re-establishment procedure near site 9312. Following action required.
Cell Name
Action
9312_3
New site recommendation in the area
Redesign Possibility on 9290_2/5 and 3148
3G KPI Performance Report
Weak Coverage and multi dominancy analysis and Recommendation

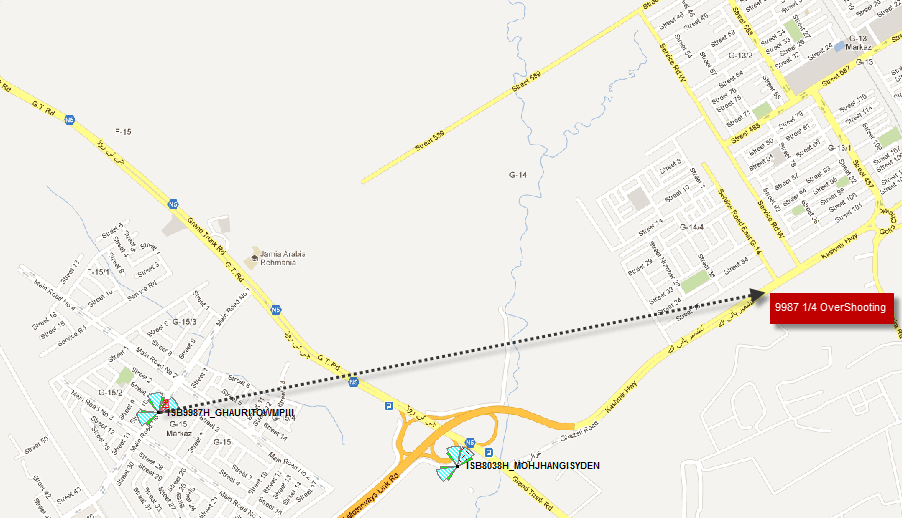

  1. Weak Coverage at G13/G14

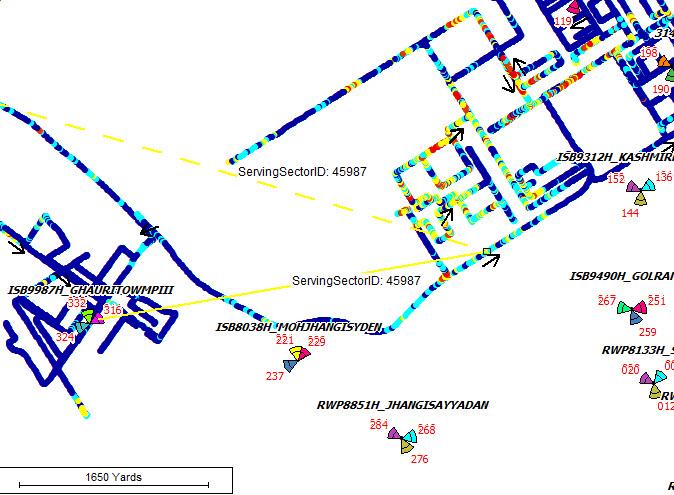

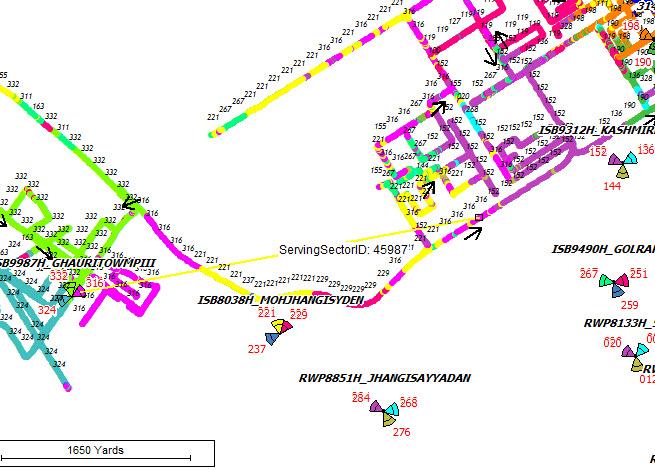

Currently, there is no on-air 3G sites in the area and it is being covered by surrounding sites overshoot.
3G coverage will improve with the help of new sites. However for improvement of QOS and reduce
multiserver redesigns can be performed.
Patch
Action
G13/G14
New site recommendation
Kashmir Highway near G13/G14
ISB9987H_1_GHAURITOWMPIII audit and redesign



  1. Weak Coverage/Multi server near 8891 turnol

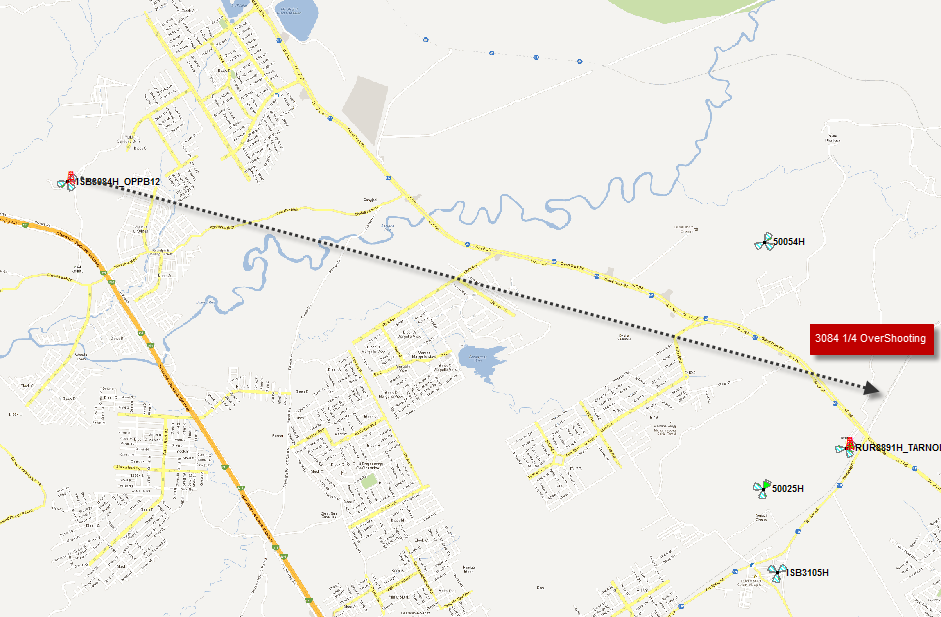

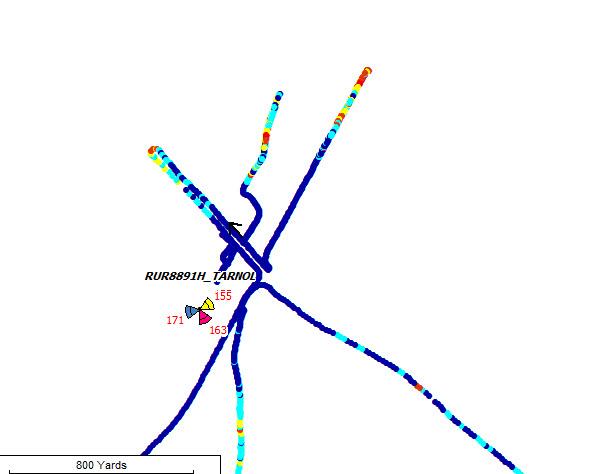

Low coverage of 8891 and Illogical serving of 3084 ¼ creating multi dominancy, weak coverage and
bad EcNo near site 8891
Patch
Action
Near 8891
Redesign of 8891 and 3084



3G KPI Performance Report

3G KPI Performance Report

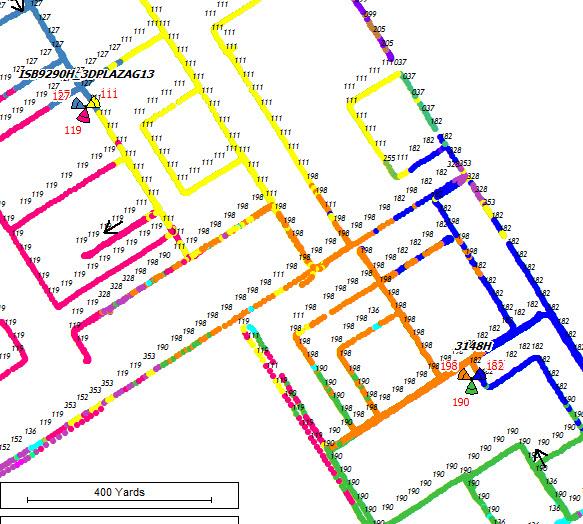

  1. Weak Coverage/Multi server near 3148

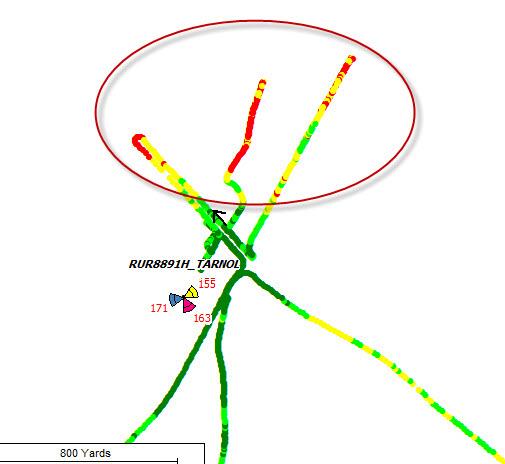

Low coverage of site 3148 creating degraded EcNo and weak coverage in the highlighted area
Patch
Action
G 13/4 near 3148
Redesign of site 3148



3G KPI Performance Report
  1. Weak Coverage/Multi server near 9628

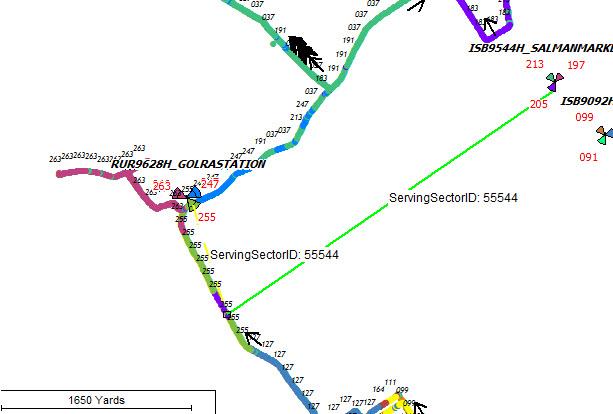

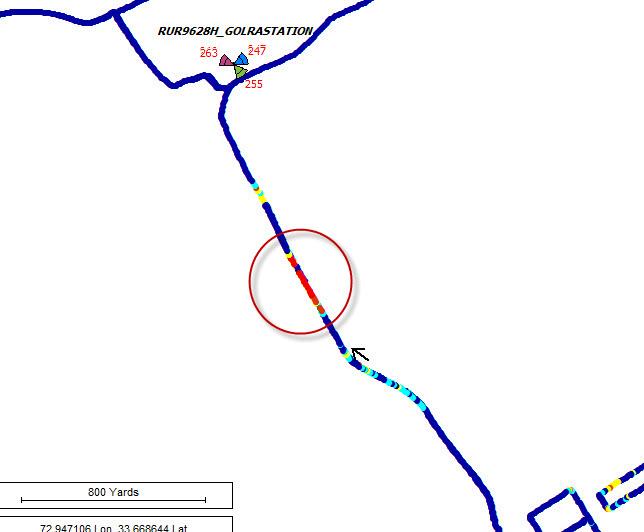

Small EcNo patch near 9628 due to overshooting of cell 9544 2 and 5 with strong levels.
Patch
Action
GolraStation Near 9628
Redesign of site 9544 2/5



3G KPI Performance Report
  1. Weak Coverage/Multi server near 9628

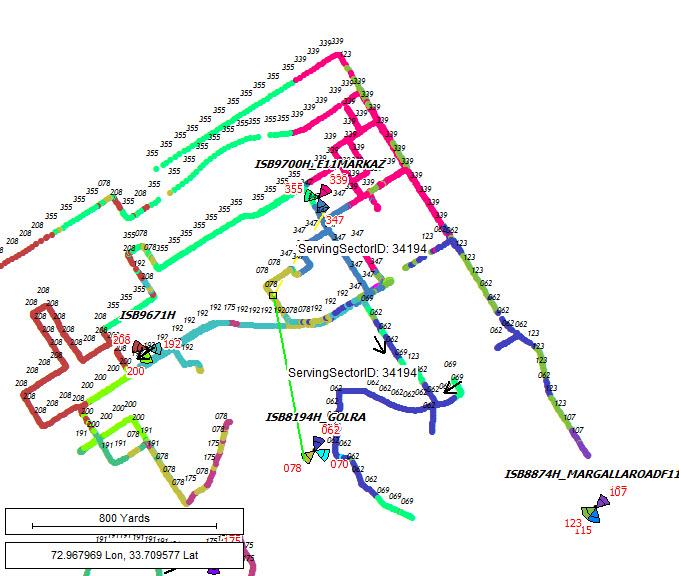

Weak RSCP in E11 due to Interferq activity and illogical serving of 8194_6 and 8874_4
Patch
Action
E 11  Weak coverage
10712 CPICH tuning + Redesign on 8194_6 and 8874_4

3G KPI Performance Report




Summary

Following actions are required for improvement of coverage in the ISB_Cluster 06.
  • Need to on air sites in G13 and G14 for good coverage
  • Redesigns are required to cater over shooters creating illogical serving and multi dominancy
